Powered Enclosure Kit (120/240VAC, 120/208VAC) (Extra Large Enclosure)

SKU: PEK-120-XL
$302.50

Details

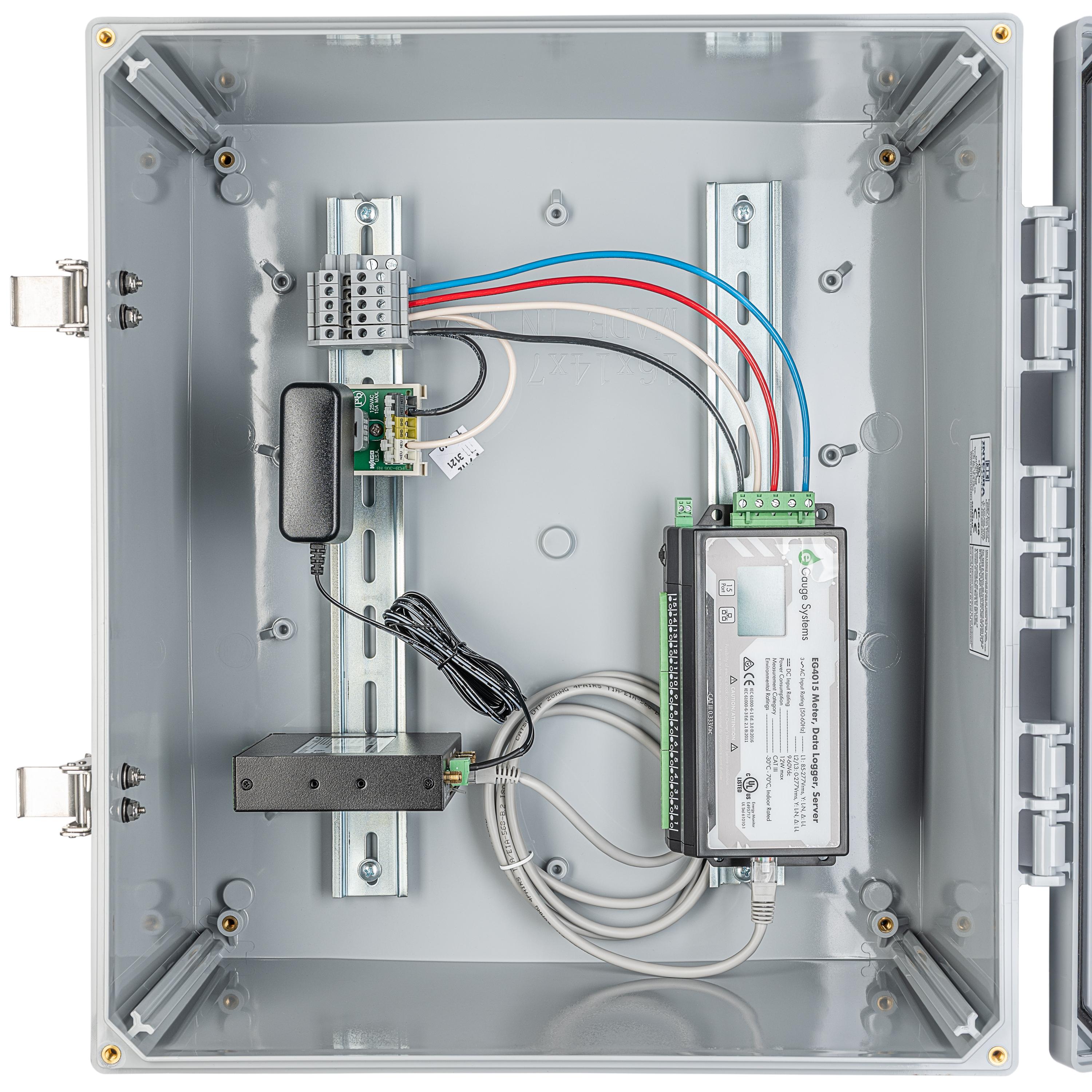

The Powered Enclosure Kit comes as a kit and requires assembly. Instructions can be found under the support tab. Cellular modem and eGauge meter sold separately.
Cellular modems provided by eGauge Systems may not be the same as shown in the Powered Enclosure Kit photo. Please check the Communication store section for the current cellular modem offering.


The Powered Enclosure Kit is designed for installation of the eGauge in combination with one of several communication protocol devices. The kit comes with components that complement the eGauge main unit, decreasing installation time and reducing complexity. Compatible services: 3p/4w 120/208vac, 1p/3w,120/240vac. It includes everything you need including DIN rails and a mounting kit for any eGauge 4 series energy meter. The enclosure is NEMA 4X/IP66 rated.

Includes

  • 1x Polycarbonate Hinged Enclosure (16" x 14" x 7")
  • 1x Power Distribution Block
    • 1x Terminal Cover Plate
    • 2x Terminal End Stops
    • 5x Terminal Blocks
  • 1x Wire Set (15' of red, black, blue, white)
  • 1x DIN-mount Receptacle
  • 2x DIN Rails
  • 1x eGauge Mounting Kit
    • 3x 6-32 3/16" Screws (for connecting DIN clip)
    • 4x #6 Screws (for connecting to eGauge)
    • EG4xxx DIN Clip
    • EG4xxx L-Bracket
