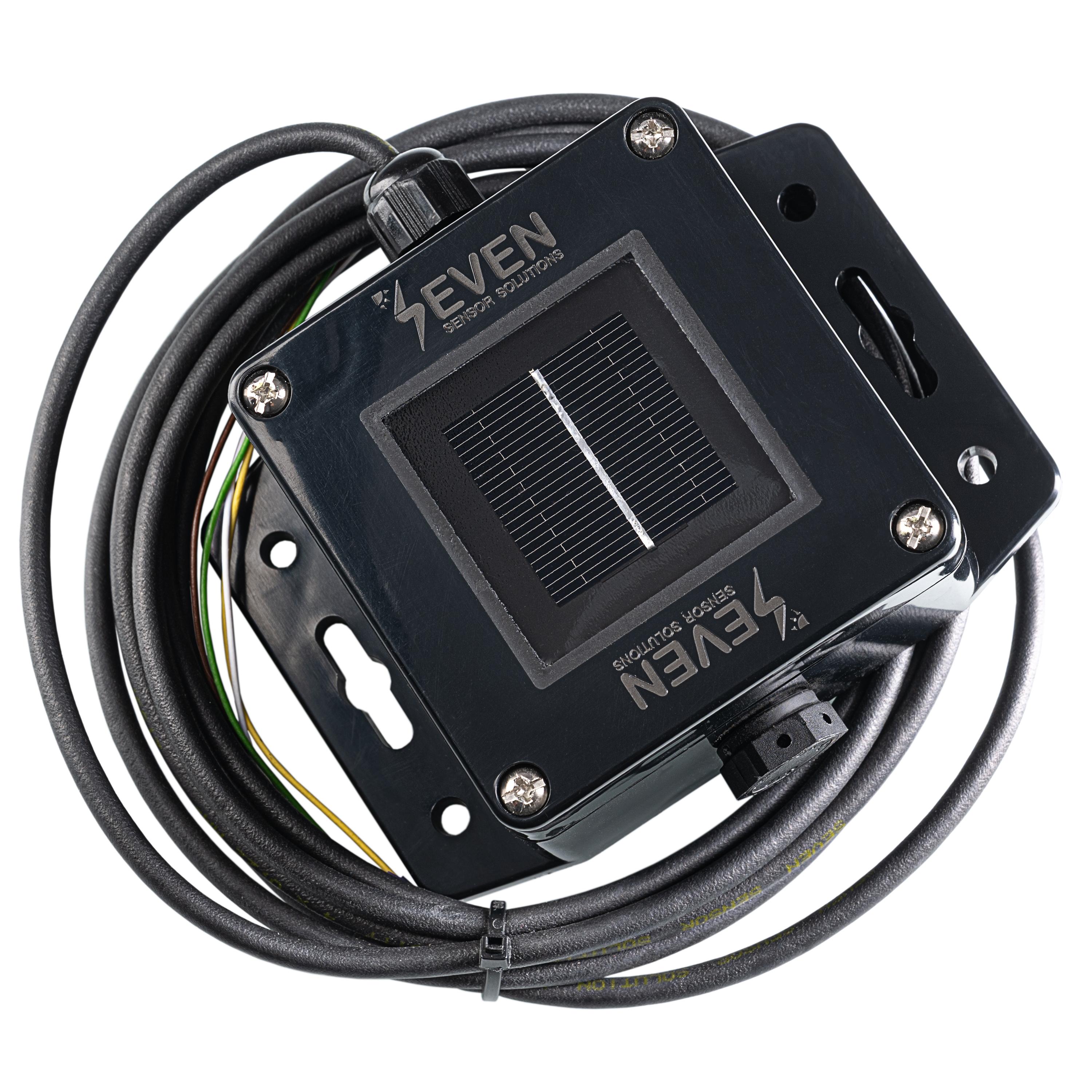

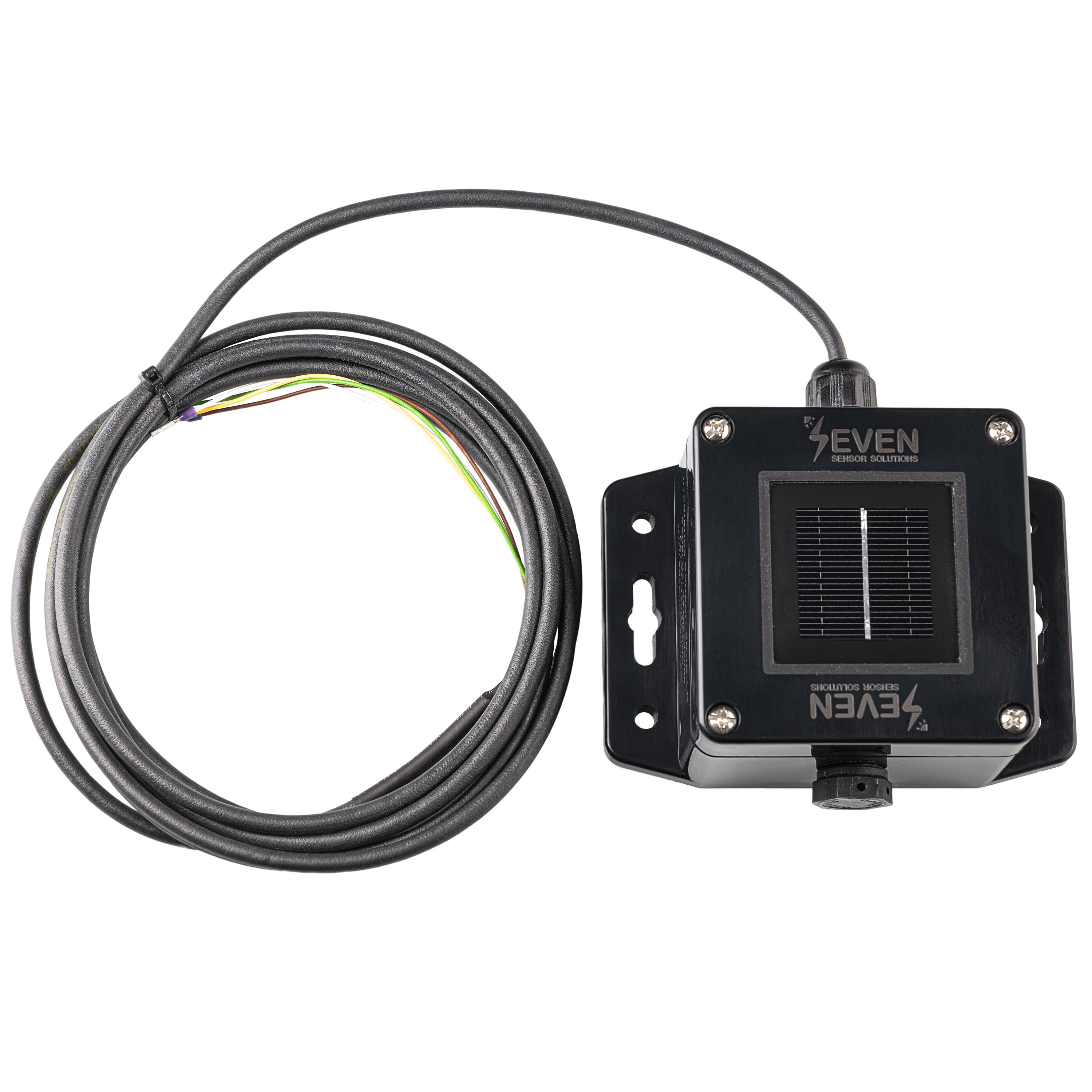

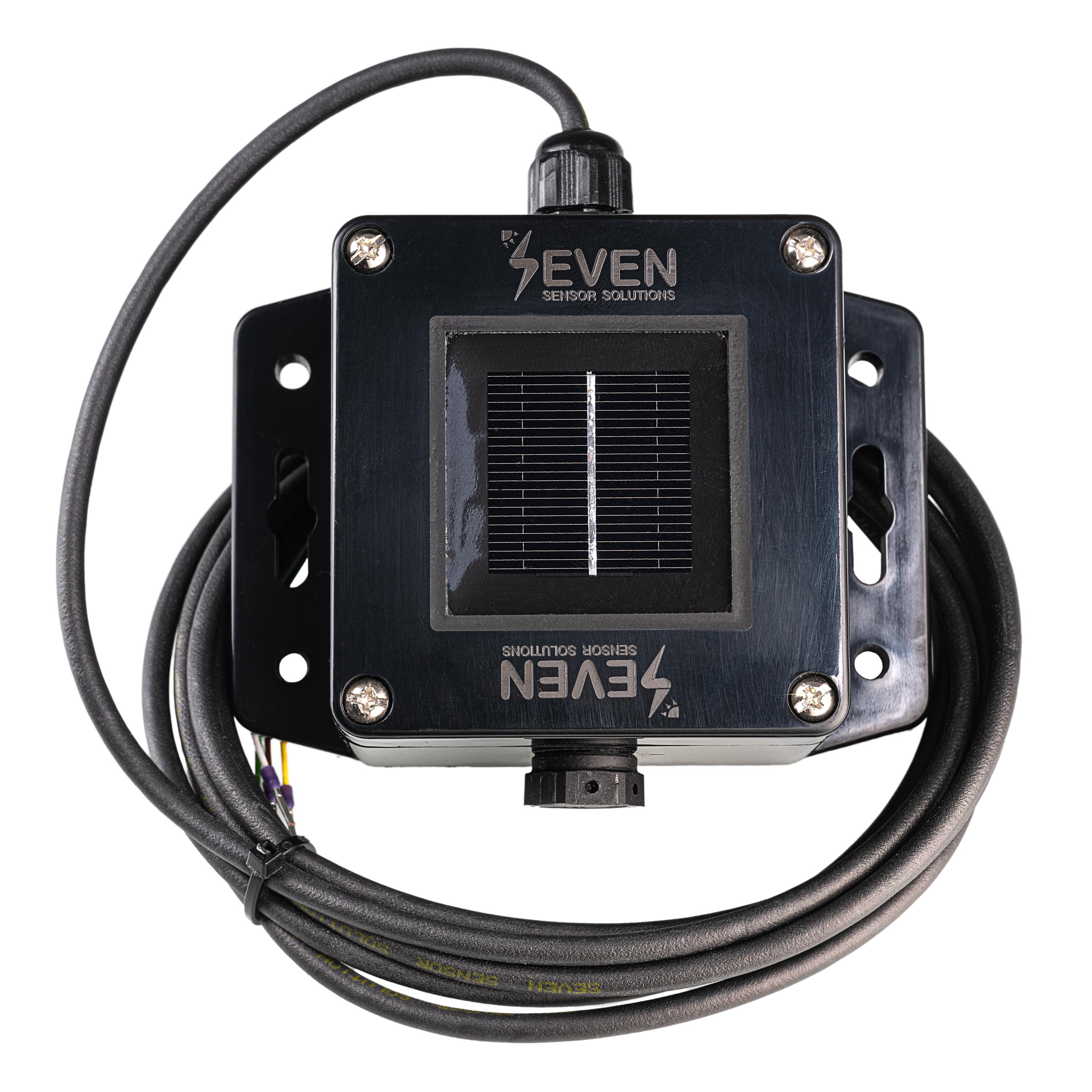

Residential Irradiance Sensor
Details
The Low-Cost Irradiance Sensor is designed to measure irradiance for residential, rooftop, or small-scale PV projects. While industrial, commercial, and utility-scale PV systems require advanced features and high-accuracy meteorological sensors, these demands are less critical for residential and small-scale applications. The cost of the sensor should align with the scale of the PV system, and SEVEN has accomplished this with the Low-Cost Irradiance Sensor. The measured irradiance data is transmitted to monitoring devices, data loggers, and other receiving units via the RS485 serial interface using the MODBUS RTU protocol.
Tech Specs
| Reference Cell | Monocrystalline Silicon (31 mm x 31 mm) |
| Irradiance Range | 0 – 1600 W/m² |
| Uncertainty | ≤3% |
| Resolution | 0.1 W/m² |
| Drift | Very small drift of <0.3%/ year |
| Output Rate | 1/s |
| Data Output | RS485 up to 38400 Baud |
| Communication Protocol | Modbus RTU |
| Power Supply | 12 to 30 V DC |
| Power Consumption | 10 mA max @24 VDC |
| Electrical Connection | 3 m LIYYC11Y PUR Cable, UV and Weather Resistant |
| Galvanic Isolation | 1000 V between power supply and RS485 bus |
| Box Dimensions | 118 mm x 84 mm x 55 mm (WxLxH) |
| Weight | 300 gr |
| IP Rating | IP67 |
| Sensor Housing Material | ABS |
| Standard | IEC 61724-1:2021 and IEC 60904 |
| Test | Each sensor is tested under natural sunlight by using a calibrated reference cell from Fraunhofer ISE, Germany |
