DC Current Transformers

SKU: DCT
$275.00 to $300.00

Details

The CR Magnetics DC CTs are special order and have a 6-8 week lead time.

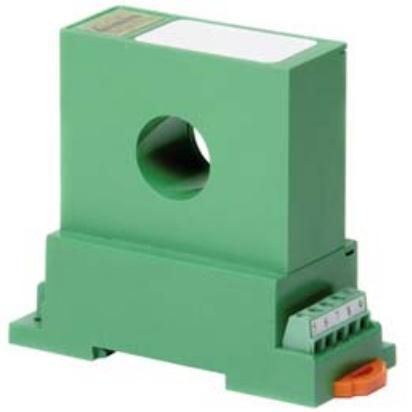

CR5220 DC Current Sensing Transducers are designed to provide a DC signal which is proportional to a DC sensed current. These devices are designed for direct current only, targeting them towards general and daily applications. The ranges 2 to 10 Amp utilize an advanced Magnetic Modulator technology and the ranges 20 amps and above utilize Hall Effect technology.

Tech Specs

  • Basic Accuracy:  1.0 %
  • Linearity:  10% to 100% FS
  • Thermal Drift:  500 PPM/°C
  • Operating Temperature:  0°C to +50°C
  • Installation Category:  CAT II
  • Isolation Voltage:  3500KVRMS/1mA/1Sec
  • Response Time:  250 ms
  • Insulation Voltage:  2500 VDC
  • Supply Voltage:  12 VDC ±10%
  • Weight:  0.5 lbs.
